A complete system for studying, exercising and developing embedded microprocessor and microcontroller systems using didactical and industrial methods accompanied with complete theory and experimental literature.
The training modules are connected to a PC via serial communication, programmed with most friendly software.
The complete curriculum covers: Principles of X86/8088 Microprocessor, Principles of the 8051 Microcontroller, Hardware and Peripheral Components, Control applications, Embedded systems (microprocessors, microcontrollers and PLD) development, Robotics and Real-Time Systems.
DSM-3098 Altera PLD Training and Development card
The projects card DSM-3098 is based on the 7128 Aletra and aimed for the following:
A work-station for learning and exercising programmable components in general and Altera in particular, including usage and activation of various development tools (graphical, AHDL, VHDL and QUARTOS software).
Embedded Altera projects.
A card for exercising digital systems and logic components by adding solderless breadboard.
Contains: switches, pushbuttons, LEDs, two 7-Segment units, crystal oscillator with frequency divider, connection points, a perforated expansion area for the user's applications, a parallel communication connection cable to the computer.
DSM-3090 Microcontroller Training and Development Card
The DSM-3090 is designated to be used as a student project card and for studying the 8051 principles, microcontroller embedded systems and peripheral components.
It is based on the 8952, which is also used as a CPU and as a microcontroller.
Includes internal timers, interrupt lines, internal ports and UART for serial communication.
The user programs are saved in the EEPROM for independent applications.
Contains: voltage regulator, 8K EEPROM, an input port with 8 switches, an output port with 8 LEDs, LATCH, decoding circuit and BUS, PC serial interface and breadboard for the user's applications.
Comes with editor, assembler, C compiler and debugger software for Windows.

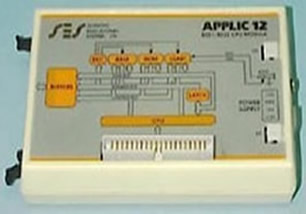

A training and development module connected to a PC and operated with SES51C software.
Includes: 8032, EPROM, switched RAM, USART and serial communication interface with a PC, INT key, RST key, power supply inlet, fully buffered SES BUS outlet, CPU emulator.
Based on the 8032, which is a powerful member of the 8051 family.
Can be used as a CPU emulator for project development using industrial techniques.
Can be easily expanded through a fully buffered SES BUS outlet to practice applications, hardware and interfacing.
With SES51C - a professional editor, assembler, C compiler and debugger program - a complete micro controller development workstation is created.

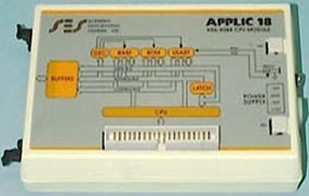

A training and development module connected to a PC and operated with SES88W software package.
Includes: 8088, EPROM, switched RAM, USART and serial communication interface with a PC, INT key, RST key, power supply inlet, fully buffered SES BUS outlet, CPU emulator.
Based on the 8088, which is a powerful member of the X86 family.
Can be used as a CPU emulator for project development using industrial techniques.
Can be easily expanded through a fully buffered SES BUS outlet to practice applications, hardware and interfacing.
With SES88W - a professional full screen editor, assembler and debugger program - a complete microprocessor development workstation is created.
A training and development module connected to a PC and operated with SES85 software package.
Contains: 8085, EPROM, switched RAM, USART and serial communication interface with a PC, INT key, RST key, power supply inlet, fully buffered SES BUS outlet.
Based on the 8085, which is the basic microprocessor.
Can be easily expanded through a fully buffered SES BUS outlet to practice applications, hardware and interfacing.
With SES85W - a professional full screen editor, assembler and debugger program - a complete microprocessor workstation is created.
A set of modules and components for exercising hardware and peripheral components. The TS-2200 card is connected directly to the SES BUS outlet on APPLIC-12, APPLIC-18 and APPLIC-15.
All the TS-2200 components are exposed to enable easy access for testing signals.
The TS-2200 is built with separate circuit blocks to cover the following subjects: Memory expansion, Hardware troubleshooting, Programmable Input/Output ports - 8255, switches and keyboard, LED display, 7-SEG display, LCD display, Timer/Counter - 8254, DAC 08, ADC 0808, Parallel communication, Serial communication with 8251.

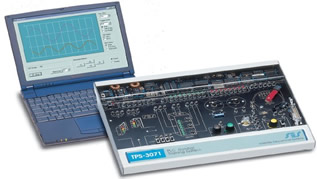

This trainer is connected to APPLIC-12, APPLIC-18 or APPLIC-15 for control applications such as: Switches and LEDS, traffic lights, elevator, DC motor and dynamo, step motor with limit sensors,temperature control and light control.
TPS-3071 can be also used as a PLC application training system.
TPS-3071 can also be connected directly to a PC and operated by PLSES Ladder diagram application software.
A microcontroller card including all the peipheral components: 8K EEPROM, 8 switches, 16 LEDs, 8 digital inputs, 8 digital outputs with 2A driver each, 8 digital I/O channels, 8 analog inputs and one analog output.
Accompanied with the SES51C - Editor, assembler, C compiler and debugger development program.
With APPLIC-71 control component module creates a mechatronics controller training system.

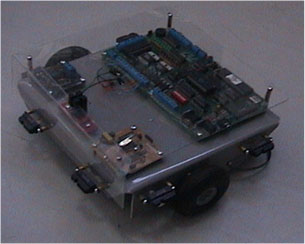

Robots based on this card won first places in international robotics competition in the USA. In 2003 they won all three first places in the international competition in Connecticut.
